China Manufacture Custom or OEM Collapsible PP Plastic Pallet Sleeve Box System

group name: Plastic Pallet Sleeve System

Min Order: 10 piece

brand name: Polyreflex

model: PR-PS

Nearest port for product export: Shenzhen, Guangzhou, Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:02:28 GMT

contact supplier

Paramtents

Brand Plastic Pallet Sleeve System
Provided Service Die-cutting, CNC Engraveing,Sealing, Bending, Welding, Printing,Attaching Spunbond…
Custom Work Color, Width, Length, Size, Weight, Packing, Processing
Certificate RoSH, REACH, V0-V2 @UL94, No Lead, No Formaldehyde Content.
Main Color pallet sleeve: grey; lid & pallet: black
Main Application logistics, packing, storing, moving
Update Time 2019-09-17

Packging & Delivery

Min Order10 piece

Briefing

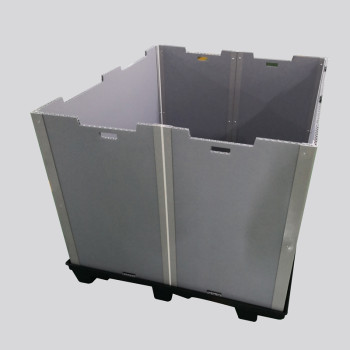

pallet sleeves are made by pp honeycomb or x type board, we can custom any design of the sleeve box

Detailed

DETAIL INFORMATIONSPolyreflex Plastic Pallet Sleeve System

Plastic Pallet Sleeve System

800*600
1100*1100
1140*980
1150*1150
1200*800
1200*1000
1220*1140
1350*1150
1470*1150
1600*1150
2070*1150

Polyreflex Plastic Pallet Sleeve System

High Strength & Light Weight & Save Space

Pallet Sleeve Systems are an excellent and low-cost alternative to
molded bulk boxes. Use them for closed loop material handling and
as returnable and reusable bulk packaging. Their unique
construction makes them the strongest pallet sleeves in the
industry. It can save the transportation cost up to 40%-80% by the
recycled use of both lining and box.

Features

Non-bowing Maximum strength in all directions
Base and cover Easy to fold flat for space saving
Easy to assemble Stackable when used with pallet
No V.O.C. Emissions Eco-friendly - 100% recyclable
Nontoxic & Hypoallergenic Storage or return shipment
Resistant to chemical agents Light weight & waterproof
Printable in many colors

Product Available

			PR 0806 H 700	PR 1111 H 900	PR 1140 H 900	PR 1150 H 900	PR 1208 H 900	PR 1210-3 H 1000	PR 1210-8 H 1000	PR 1220 H 1000	PR 1350 H 1000	PR 1470 H 1000	PR 1600 H 1000	PR 2070 H 1000
Material	Pallet		Twin-sheet HDPE
	Reinforced		-	-	-	-	-	-	Steel Rod Reinforced	-	-	-	-	-
	Lid		Twin-sheet HDPE
	Sleeve		PP - 10mm - 3000g						PP Fiber-glass Reinforced - 11mm - 4000g	PP - 10mm - 3000g			PP -11mm -3500g
Weight in KG	Tare		17	31	30	32	29	33	56	38.5	40	44	52	61
	Payload		200	300	300	300	280	300	800	300	300	300	300	300
	Max Ballast		800	1200	1200	1200	1120	1200	1600	1200	1200	1200	1200	1200
Stack Layer	Static		1+3	1+3	1+3	1+3	1+3	1+3	1+1	1+3	1+3	1+3	1+3	1+3
Stack Layer	Dynamic		1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1
Dimension in mm	Outside	L	800	1100	1140	1150	1200	1200	1200	1220	1350	1470	1600	2070
		W	600	1100	980	1150	800	1000	1000	1140	1150	1150	1150	1150
		H	700	900	900	900	900	1000	1000	1000	1000	1000	1000	1000
	Inside	L	760	1060	1100	1110	1160	1160	1160	1180	1310	1430	1560	2030
		W	560	1060	940	1110	760	960	960	1100	1110	1110	1110	1110
		H	520	720	720	720	720	820	820	820	820	820	820	820
	Folded	L	800	1100	1140	1150	1200	1200	1200	1220	1350	1470	1600	2070
		W	600	1100	980	1150	800	1000	1000	1140	1150	1150	1150	1150
		H	238	238	238	238	238	238	238	238	238	238	238	238
Remark: Sleeve size can be customized according to your request if you have your own pallet/lid system, and gsm of pp honeycomb panel can be produced from 2500-4000gsm accroding to your design.
