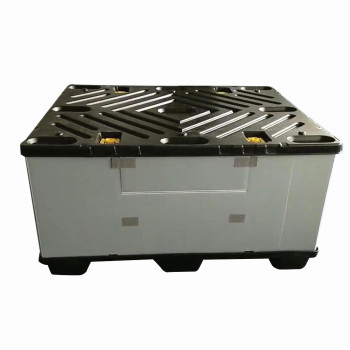

Polypropylene Plastic Storage Box with Lock for Warehouse and Logistics

group name: Plastic Pallet Sleeve System

Min Order: 10 piece

brand name: Polyreflex

model: PR-plastic storage box

Nearest port for product export: Shenzhen, Guangzhou, Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:02:32 GMT

contact supplier

Paramtents

Product Polypropylene Plastic Storage Box with Lock
Provided Service Edge sealing, welding,die-cutting,door, printing..
Custom Work color, size, GSM, function, pack, process
Certificate RoSH, REACH, V0-V2 @UL94, No Lead, No Formaldehyde
Main Color Pallet sleeve: grey; lid & pallet: black
Main Application storage, shipping, moving, logistics, packag
Size Range 370-1470mm

Packging & Delivery

Min Order10 piece

Briefing

Reusable Durable Big PP Polypropylene Plastic container storage box for warehouse and logistics with locks to fix

Detailed

Polyreflex Pallet Sleeve System

Collapsible
Reusable
Heavy Load

Description
Standard Sizes
Stacked Layer
Custom Sleeve Packs
Folding Steps
Folding Type
Product Images

Description

Polypropylene Plastic Storage Box with Lock for Warehouse and Logistics

provide a perfect solution for warehouse, logistics and turnover system, it has advantages of light weight, heavy carry, reusable, collapsible. It's lighter and moth proof than plywood crate, durable and waterproof than carton box.

A pallet sleeve pack set is made up of a HDPE pallet base, collapsible polypropylene triple walls, and a top lid. The pallet base and top lid are nestable and thus the pallet sleeve systems can be stably stacked to help optimize storage and transportation utilization.

The pallet sleeve box sysstem performs very well in flowers and trees transportation, vegetable transportation, electronic display, auto parts, car headlights, car circuit assembly, car battery pack, new energy vehicle battery pack.

Locks to fix it well

Could use 4 plastic locks to fix the top lid and bottom pallet with the sleeves, to help the whole pallet pack box set connect firmly with each other; when you need to seperate them and fold the sleeve, just push the locks to unlock

Space-efficient

The pallets and lids are nestable and the sleeves are collapsible, yielding improved warehouse utilization and reducing freight costs. One truck of folded sleeve packs can be used to transport 10 trucks of assembled pallet boxes with cargo.

Cost-effective

Lightweight polypropylene pallet box sleeve has more cycles than cardboard sleeves. Although the price of PP sleeve is higher, it usually paying for itself within 6 months. A plastic sleeve container can withstand more than 20,000 folds.

Easy to Assemble

Polyreflex pallet sleeve system is easy to assemble and disassemble. It takes one person only a minute to assemble or disasemble a container: taking off the lid, unfold the sleeves, put back the lid. No need any special tools to help the job.

Easy to transport and store

Polyreflex plastic polypropylene pallet containers have the standard sizes 4 feet pallet, easy to use forklift to liftup, put down and transport. The sleeve part can fold inside the pallet and lid, then pile up to store.

Standard Sizes

Components	Lid	Sleeve Pack	Pallet
Material	Thermoformed HDPE	Polypropylene	Thermoformed HDPE
Thickness of material	——	8 - 12mm	——
Weight of material	——	2500 - 4200 g/m2	——
External length	700 - 1470mm	660 - 1430mm	700 - 1470mm
External width	400 - 1150mm	360 - 1110mm	400 - 1150mm
External height	700 - 1200mm
Stack layer	1+1 for dynamic load, 1+3 for static load
Payload	200 - 400KG
Max. ballast	600 - 1200KG

Stacked Layer

upper side of bottom pallet

Injection molded HDPE top lid and pallet

bottom side of bottom pallet

Polyreflex all-in-one collapsible sleeve packs

upper side of top lid

bottom side of top lid

Custom Sleeve Packs

Custom heights and double color pallet sleeve packs are available

Polyreflex provides custom color and printing of sleeve box

The spacer layer in the plastic pallet box

Custom shape and structure of sleeves are available

The spacer layer and the door opening are optional

Sleeve packs with PVC profiles or steel profiles to strengthen

Folding Steps

❶ The assembled storage box

❷ Remove the top lid

❸ Take out the inside goods

❹ Fold the sleeve up

Lay the folded sleeve pack flat on the pallet

❺ Lay the folded sleeve container flat on the pallet

❻ Put the lid on the sleeve and pallet

Folding Type

M Fold - sleeve width is less than or equal to pallet width

Z Fold - sleeve width is greater than pallet width

I Fold - suitable for small sleeve packs

I Fold - suitable for small sleeve box

Processing Steps

Ⅰ. Die-cut the PP honeycomb panel

Ⅱ. Sealing edges, the round edge and flat edge are optional

Ⅲ. Opening windows

Ⅳ. Make the creasing line

Ⅴ. Customize printing

Ⅵ. Butt welding

Product Images

Lid and Pallet

Polyreflex standard bottom pallet, steel tube reinforced pallet, lids and pallets in stock. Please contact us for more designs and sizes of lids and pallets.

Sleeve Packs

Finished Polyreflex pallet sleeve packs waiting for packing and shipping.

Polypropylene Bubble Board

Pre-cutting on production line and pre-processed polypropylene honeycomb panel ready to make sleeve packs.

Packing and Loading

Loading sleeve packs in bulk or with pallet.
